Tuesday 1 November 2011

Werra 1

Werra with 50mm Novonar f3.5 lens
The Werra is a unique 35mm compact camera produced by Carl Zeiss Jena. The version I bought at the Mauerpark flea market is the original olive green model with a 50mm Novonar f3.5 lens. This model is generally referred to as the Werra 1 to distinguish it from the subsequent versions, but at the time was simply called 'Werra'. Not knowing much about the Werra when I bought it, I had assumed that it dated from the 1960s, due to its streamlined design. However production began in 1954, and the serial number on my camera's lens dates it to 1955. Compare the look of the Werra with, for example, the Kodak Signet or the Baldessa, both 35mm viewfinder cameras contemporary to the Werra and it's easy to see how advanced its design was for the mid-1950s. One might speculate for the reason for this is that the Werra was made by Carl Zeiss Jena, principally a lens manufacturer, which made very few cameras. Perhaps it's a camera built around a lens, without being derived from any precedents. In keeping with the minimalist design, the camera is marked with just the name 'WERRA' embossed on the lens cap and rear of the body, 'Novonar' on the lens and the manufacturer's name is entirely absent.

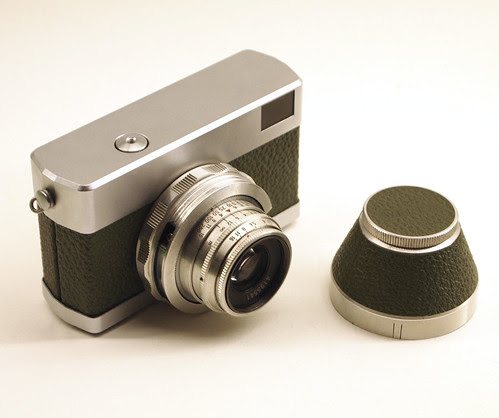

Werra with lens cap/shade removed
The two most distinctive aspects of the Werra's design are its unusual film advance, which works by turning the aluminium bezel around the lens, and the combined lens cap and shade. The lens cap can be unscrewed from the shade, the shade removed, reversed and attached. The camera's controls are located around the lens, and, with the frame counter on the underside of the camera, which leaves just the shutter release for the top plate. The original Werra is a completely manual camera, without a meter. However there are figures around the lens picked out in red for optimum exposure and focus: 1/50th of a second on the shutter, f8 for the aperture, and 6m on the focus ring, which at f8 gives a depth of field from just beyond 3m to nearly infinity.

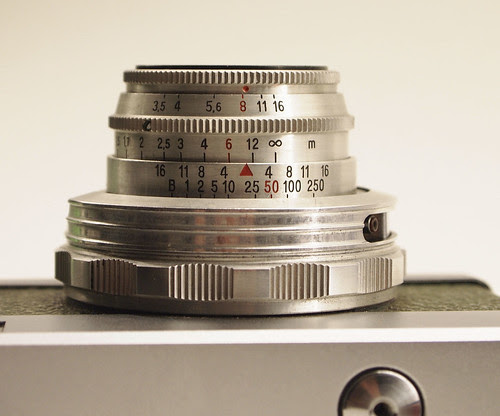

Detail of figures picked out in red around the lens
Obviously this depends on film speed and lighting conditions, but one can assume that these settings were designed to be used in fair daylight conditions with a film of medium speed. I used these settings to finish the film that was in the camera when I bought it. Raul M, in his blog post about the Werra, suggests that the shade can be left on covering the controls, effectively turning the Werra into a point and shoot camera. The entire back and bottom plate slides off to load the film, which travels from right to left, opposite to the direction 35mm film normally travels in a camera (although this is also true of the Agfa Optima Sensor), meaning that the frames on the developed film appear to be upside down, and also read in sequence right to left.

Sample image from the Werra, FP4 stand developed in Rodinal 1:100
Sample image from the Werra, FP4 stand developed in Rodinal 1:100

ORWO NP 20: Mauerpark Flea Market & Found Images

ORWO NP 20 35mm film
Inside the Werra camera I bought at the Mauerpark flea market in Berlin there was a partly used roll of film, which I inadvertently exposed when opening the camera to check the shutter. On buying the camera, it felt appropriate to use the rest of the film taking photographs in the flea market itself. Being a manual camera, and not knowing what the film's speed was, I used the settings marked out in red on the Werra to shoot the film.

Flohmarkt am Mauerpark, ORWO NP 20 film
Flohmarkt am Mauerpark, ORWO NP 20 film
Slot Machine, Flohmarkt am Mauerpark, ORWO NP 20 film
Flohmarkt am Mauerpark, ORWO NP 20 film
Once I'd finished the film, and could safely open the camera again, I discovered that the film was a roll of ORWO NP 20, an East German black and white film, presumably dating back to before reunification. It was also in a reusable plastic film canister, with the minimal label stuck across the join with the canister's screw top. To develop the film, I used Rodinal, diluted 1:100 for 1 hour stand development, with a couple of inversions at the 30 minute mark. I've previously used stand development with unknown or old films (including colour) with some success as it seems to simply reveal what's actually on the film. The frames I shot on the film came out well enough, apart from the inevitable light leaks. More excitingly, the film that had already been exposed in the camera yielded a number of frames, which I had feared would have mostly been lost due to being exposed to light when I opened the camera, yet a dozen frames came out almost unaffected. After an oblique shot of a fence and a greenhouse, the unaffected frames show some sort of parade or procession (oddly enough, as do some of the photographs on the first roll of old film I developed), while some of the frames largely obliterated by light leaks appear to show sheep shearing on a farm.

Found image on a roll of ORWO NP 20
Found image on a roll of ORWO NP 20
Found image on a roll of ORWO NP 20
Found image on a roll of ORWO NP 20
The images already on the film appear to show a couple of aspects of life in rural Germany. Judging from the haircuts and clothes of some of the younger people watching the parade, the pictures were no doubt taken some time in the 1980s.
